Xperix RealScan G10
About this unit
- Included: USB cable, power adapter
- Ships from Michigan, US addresses only
- 30-day returns
- Warranty on every graded unit, see terms
About the Xperix RealScan G10

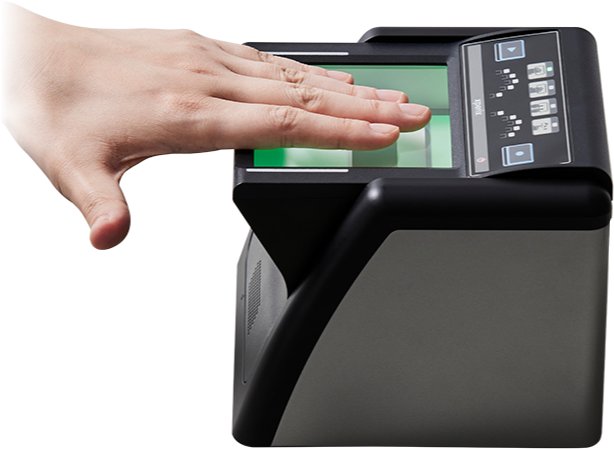

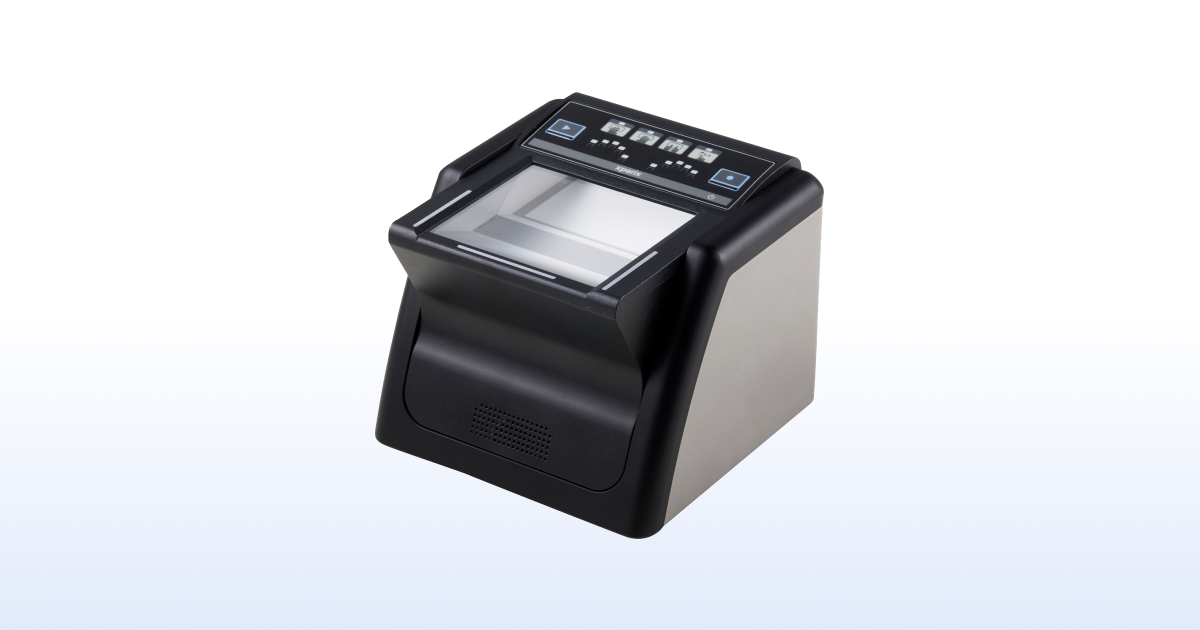

The RealScan G10 is a FAP 60 ten-print livescan scanner from Xperix, formerly sold under the Suprema name. It carries FBI Appendix F certification for identification flats, livescan ten-print systems, and Mobile ID FAP 60, and captures four-finger slaps and single rolled prints at 500 ppi with automatic capture, halo and latent elimination, and AI-based live finger detection. A built-in speaker with voice instructions and an LED indicator guide the person being printed, which suits it to high-throughput applicant livescan, booking stations, border control, and national ID enrollment where operators cannot coach every capture. New units are available by quote, and we list tested used units when our own operations retire them.
Specifications
| Certification | FBI Appendix F: identification flats, ten-print livescan, Mobile ID FAP 60 |
|---|---|
| Capture | Four, two, or single flat fingers and single rolled prints, full ten-print |
| Sensing area | 3.20 x 3.00 in (81.3 x 76.2 mm) |
| Platen size | 3.50 x 3.15 in (89 x 80 mm) |
| Resolution | 500 ppi, 8-bit 256-level grayscale |
| Image size | 1600 x 1500 pixels (four-finger flat) |
| Image formats | RAW, BMP, WSQ, JPEG2000, ISO 19794-4 |
| Live finger detection | AI-based, ISO/IEC 30107-3 PAD Level 1 and 2 tested by BixeLab |
| Operator guidance | Voice instructions via built-in speaker, LED indicator |
| Interface | USB 2.0 High Speed, powered from the USB host, 5.0 V |
| Dimensions | 5.98 x 5.98 x 5.00 in (152 x 152 x 127 mm) |
| Weight | 3.97 lb (1.8 kg) |
| Operating temperature | -10 to +55 C (14 to 131 F) |
| Humidity | 10 to 90% RH, non-condensing |
| Ingress protection | IP54 sealed between bezel and sensor surface |
Compatibility
Certifications
Certified under the FBI's Appendix F image quality specification for livescan and card-scan systems, per the FBI Certified Products List.
Fingerprint Acquisition Profile 60: defines the capture area and image requirements this scanner is certified to. Higher FAP levels capture more fingers at once. See our FAQ for a plain-English guide.
Captures rolled fingerprints, required for most applicant and booking workflows.
What's in the box
- The specific Used - Grade B (Good) unit selected above (SN ****0001)
- Included with this unit: USB cable, power adapter
- Test checklist results for this unit
- Downloadable datasheet and driver links
Used units ship with the accessories listed on the specific unit, securely packed. Original manufacturer packaging is not guaranteed.
Software licenses do not transfer
Used hardware is sold as hardware only. Capture software, SDK licenses, and transmission accounts associated with the previous owner do not transfer with the device. You will need your own licensed software for a compliant setup; ask us if you are not sure what your workflow requires.
