Integrated Biometrics Kojak
About this unit
- Included: USB cable
- Ships from Michigan, US addresses only
- 30-day returns
- Warranty on every graded unit, see terms

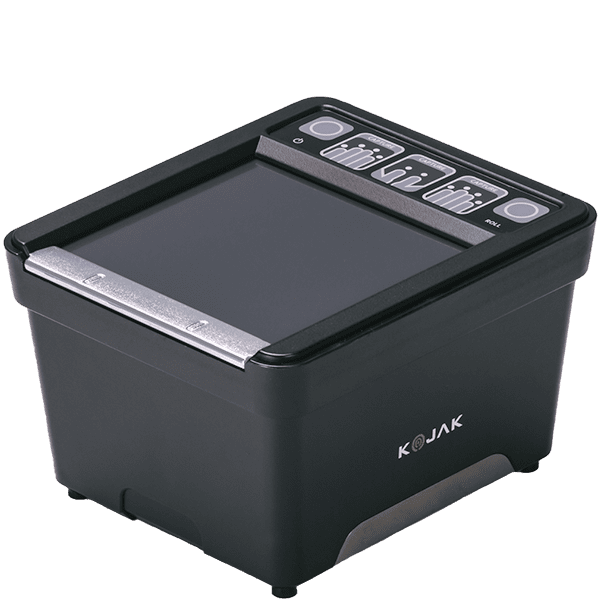

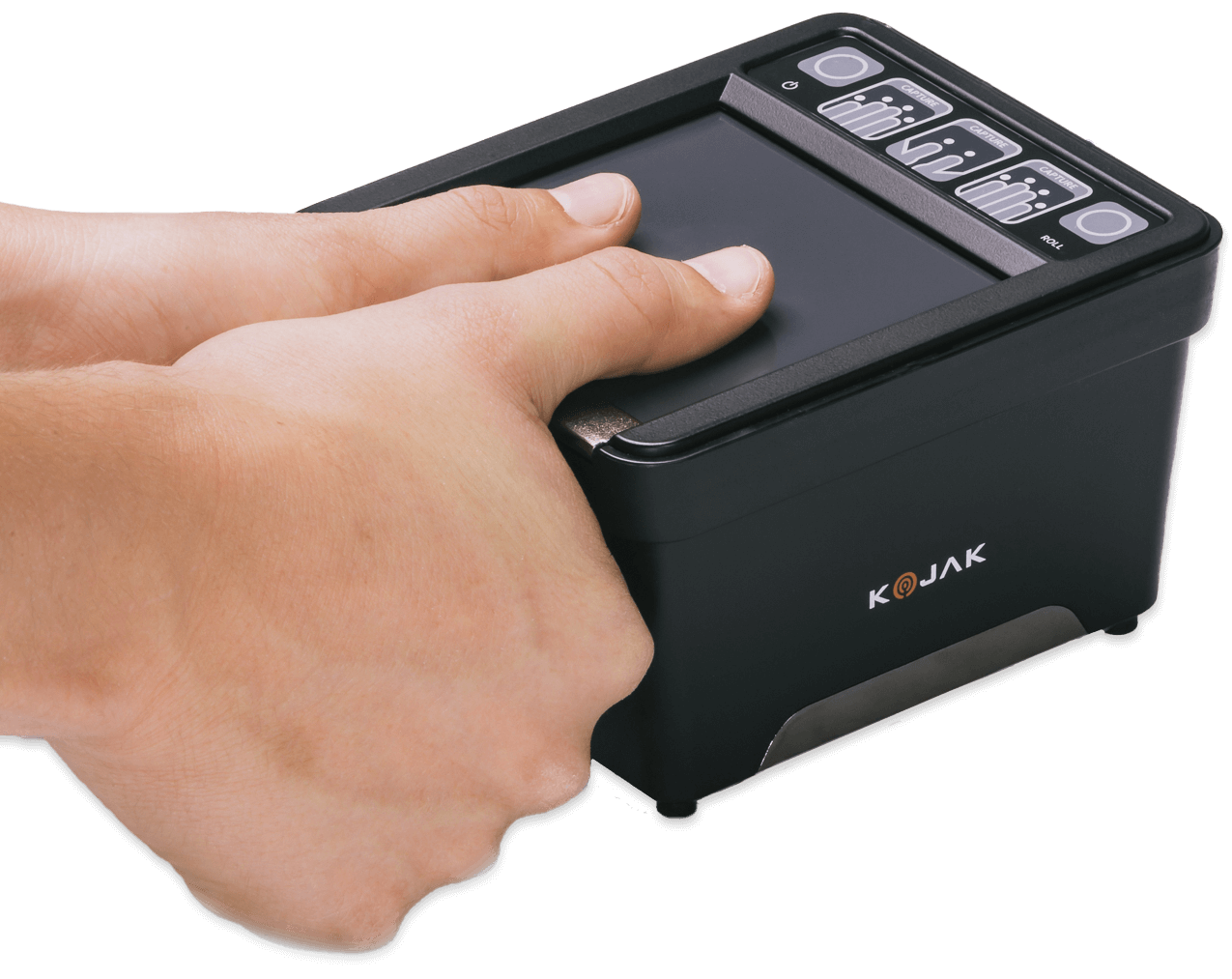

About the Integrated Biometrics Kojak
The Kojak is a FAP 60 ten-print scanner from Integrated Biometrics, certified under the FBI Appendix F image quality specification. It captures four-finger slaps and single rolled prints at 500 ppi on a 3.2 x 3.0 inch sensing area, using LES film technology that reads dry or moist fingers and keeps working in direct sunlight. The whole unit runs on USB power alone, no external supply. At 1.6 pounds it does the work of a desktop livescan without the bulk, which is why it shows up in applicant fingerprinting and background check operations, mobile enrollment and civil ID programs, border processing, and booking stations that need full ten-print capture in the field. We run fingerprinting operations on this hardware ourselves, so every unit we sell, new or graded used, has been handled by people who use it daily.
Specifications
| Certification | FBI Appendix F, FAP 60 |
|---|---|
| Capture | Four-finger slaps and single rolled prints, full ten-print |
| Sensing area | 3.20 x 3.00 in (81.2 x 76.3 mm) |
| Platen size | 3.50 x 3.15 in (88.9 x 80.0 mm) |
| Resolution | 500 ppi, 256-level grayscale |
| Image size | 1600 x 1500 pixels |
| Image formats | RAW, BMP, PNG, JPEG, JPEG2000, WSQ |
| Sensor | LES (light emitting sensor) film with CMOS camera |
| Spoof detection | iBeta ISO 30107-3 compliant presentation attack detection |
| Interface | USB 2.0, USB 3.0 host compatible |
| Power | USB bus powered, 4.4 to 5.25 V, under 300 mA while scanning |
| Dimensions | 4.52 x 5.19 x 3.23 in (114.7 x 131.8 x 82 mm) |
| Weight | 1.60 lb (725 g) |
| Operating temperature | -10 to +55 C (14 to 131 F) |
| Humidity | 20 to 95% RH, non-condensing |
| Durability | IP65 sealed bezel, MIL-STD-810F, MIL-C-675c scratch resistance |
Compatibility
Certifications
Certified under the FBI's Appendix F image quality specification for livescan and card-scan systems, per the FBI Certified Products List.
Fingerprint Acquisition Profile 60: defines the capture area and image requirements this scanner is certified to. Higher FAP levels capture more fingers at once. See our FAQ for a plain-English guide.
Captures rolled fingerprints, required for most applicant and booking workflows.
What's in the box
- The specific Used - Grade B (Good) unit selected above (SN ****0001)
- Included with this unit: USB cable
- Test checklist results for this unit
- Downloadable datasheet and driver links
Used units ship with the accessories listed on the specific unit, securely packed. Original manufacturer packaging is not guaranteed.
Software licenses do not transfer
Used hardware is sold as hardware only. Capture software, SDK licenses, and transmission accounts associated with the previous owner do not transfer with the device. You will need your own licensed software for a compliant setup; ask us if you are not sure what your workflow requires.
