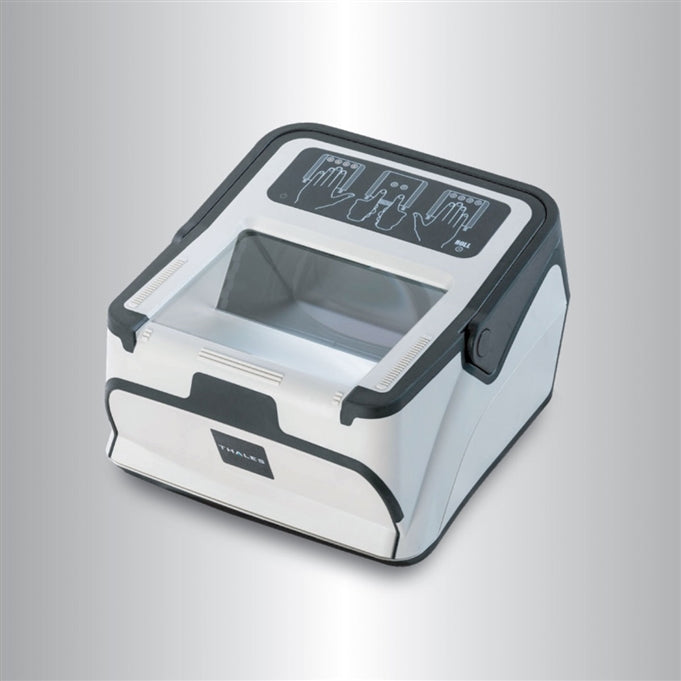

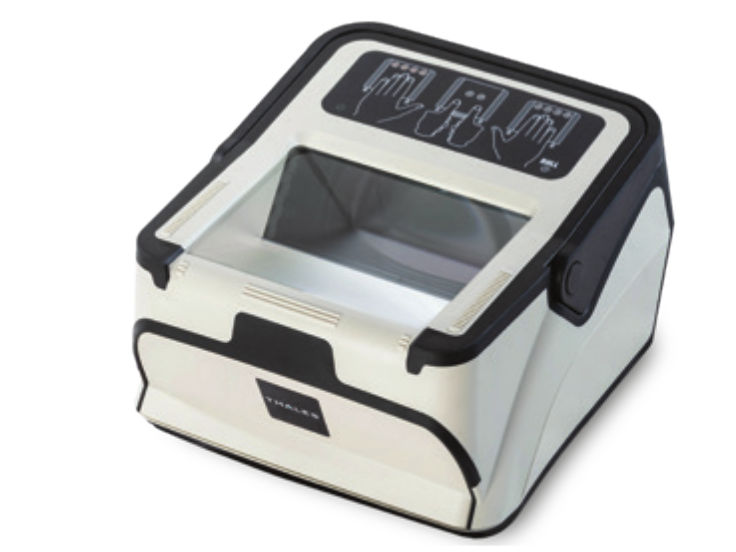

Thales Multifinger Scanner CS500f
Ordering code: A2675304- Ships from Michigan, US addresses only
- 30-day returns
- Full manufacturer warranty on new hardware, see terms
About the Thales Multifinger Scanner CS500f
The CS500f is a multifinger livescan scanner from the Thales Cogent line, certified by the FBI under IAFIS IQS Appendix F as a livescan system and for identification flats, and compliant with Appendix P. It captures four-finger slaps and flat thumbs on a 3.2 x 3.0 inch platen and single rolled prints up to 1.6 x 1.6 inches at 500 dpi over USB 3.0. The MultiScan SDK adds automatic sequence checking, slap segmentation, rolled capture with seamless compositing, latent and halo elimination, and NIST quality scoring, and options such as a prism heater, LCD touchscreen, and silicone membrane adapt it to high-volume civil enrollment, border processing, and background check operations. We sell it new as an authorized Thales partner, with factory warranty and an optional extended annual warranty.
Specifications
| Certification | FBI IAFIS IQS Appendix F certified (livescan and identification flats), Appendix P compliant |
|---|---|
| Capture | Four-finger slaps, flat thumbs, single rolled prints |
| Slap capture area | 3.2 x 3.0 in (81 x 76 mm) |
| Rolled capture area | Up to 1.6 x 1.6 in (40.6 x 40.6 mm) |
| Resolution | 500 dpi |
| Image formats | WSQ, JPEG, JPEG2000; ANSI/NIST-ITL record output |
| Capture features | Auto start and stop, sequence check, slap segmentation, latent and halo elimination, NIST quality check |
| Liveness detection | Optional software add-on |
| Operator guidance | 12 three-color LEDs |
| Interface | USB 3.0 |
| Dimensions | 5.94 x 5.83 x 4.02 in (151 x 148 x 102 mm) |
| Weight | 3.31 lb (1.5 kg) |
| Operating temperature | 0 to +50 C (32 to 122 F) |
| Humidity | 10 to 90% RH, non-condensing |
| Ingress protection | IP54 |
| Options | Prism heater, LCD color touchscreen, silicone membrane, DactyMatch software |
Compatibility
Certifications
Certified under the FBI's Appendix F image quality specification for livescan and card-scan systems, per the FBI Certified Products List.
Captures rolled fingerprints, required for most applicant and booking workflows.
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
