Thales DactyScan84c
Ordering code: A3209877- Ships from Michigan, US addresses only
- 30-day returns
- Warranty on every graded unit, see terms

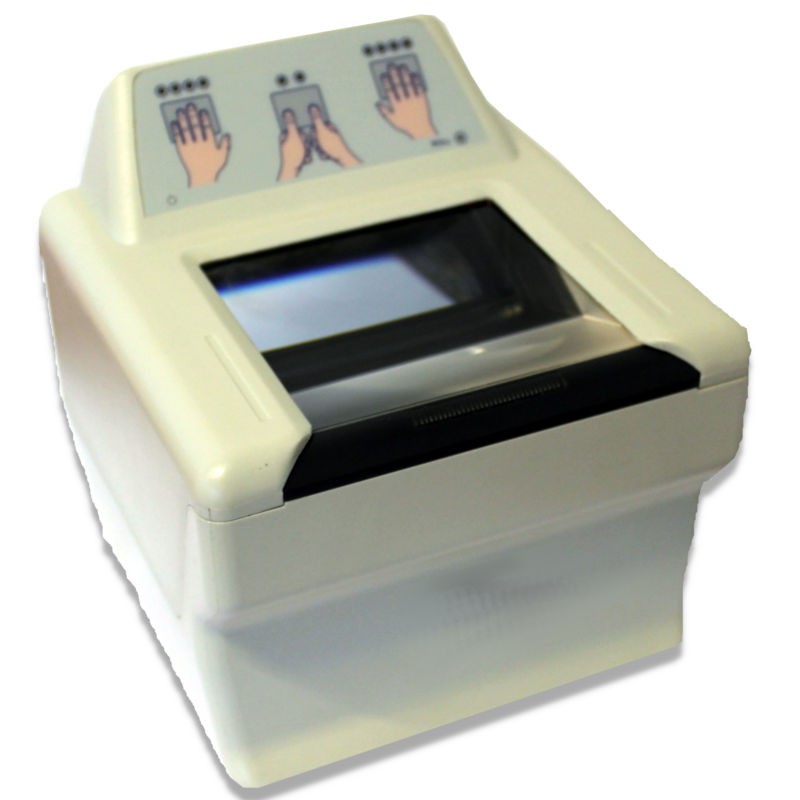

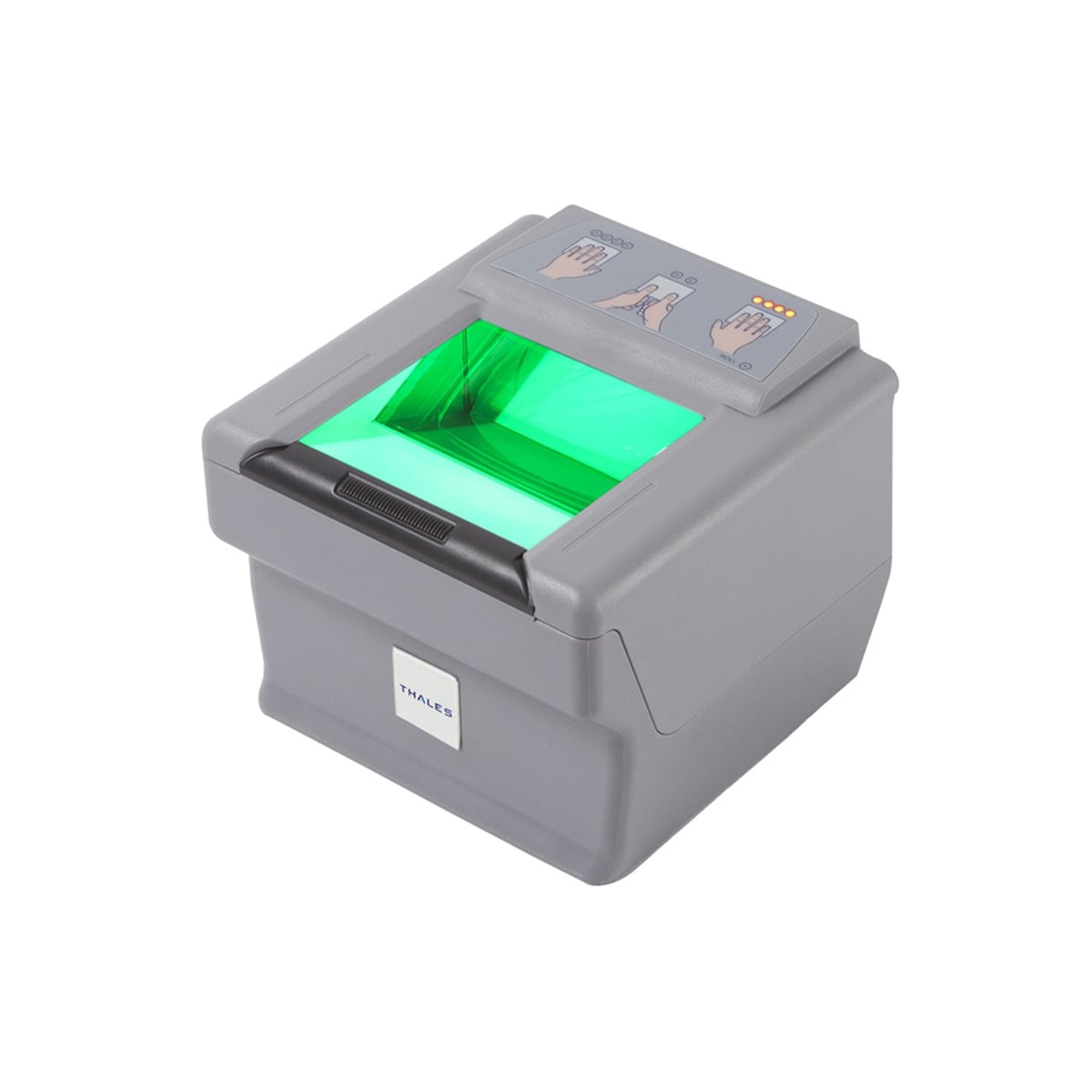

About the Thales DactyScan84c
The DactyScan84c is a ten-print livescan scanner certified to FBI IAFIS IQS Appendix F at FAP 60, developed by Green Bit and now part of the Thales biometrics line. It captures four-finger slaps and flat thumbs on a 3.2 x 3.0 inch platen and single rolled prints up to 1.6 x 1.6 inches, all at 500 dpi in 8-bit grayscale, running entirely on USB 2.0 bus power with twelve tri-color LEDs guiding the capture sequence. Its MultiScan SDK handles automatic capture start and stop, slap segmentation and sequence checks, latent and halo elimination, and NIST image quality scoring, which is why the 84c has served in civil ID and passport enrollment, applicant background checks, and law enforcement booking worldwide. We sell it new as an authorized Thales partner, with factory warranty and an optional extended annual warranty, and every unit is tested before it ships.
Specifications
| Certification | FBI IAFIS IQS Appendix F, FAP 60 |
|---|---|
| Capture | Four-finger slaps, flat thumbs, single rolled prints, full ten-print |
| Slap capture area | 3.2 x 3.0 in (81.2 x 76.2 mm), 1600 x 1500 pixels |
| Rolled capture area | 1.6 x 1.6 in (40.6 x 40.6 mm), 800 x 800 pixels |
| Resolution | 500 dpi, 8-bit 256-level grayscale |
| Image formats | WSQ, JPEG, JPEG2000 |
| Sensor | Optical, no moving parts |
| Capture features | Auto start and stop, slap segmentation, sequence check, latent and halo elimination, NIST quality check |
| Fake finger detection | Optional software add-on |
| Operator guidance | 12 three-color LEDs |
| Interface | USB 2.0, bus powered, no external supply |
| Dimensions | 5.83 x 5.98 x 5.83 in (148 x 152 x 148 mm), flat-top version 121 mm deep |
| Weight | 3.09 lb (1.4 kg) |
| Operating temperature | 0 to +50 C (32 to 122 F) |
| Humidity | 10 to 90% RH, non-condensing |
| Ingress protection | IP54, indoor use |
Compatibility
Certifications
Certified under the FBI's Appendix F image quality specification for livescan and card-scan systems, per the FBI Certified Products List.
Fingerprint Acquisition Profile 60: defines the capture area and image requirements this scanner is certified to. Higher FAP levels capture more fingers at once. See our FAQ for a plain-English guide.
Captures rolled fingerprints, required for most applicant and booking workflows.
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
Used units ship with the accessories listed on the specific unit above.
Software licenses do not transfer
Used hardware is sold as hardware only. Capture software, SDK licenses, and transmission accounts associated with the previous owner do not transfer with the device. You will need your own licensed software for a compliant setup; ask us if you are not sure what your workflow requires.
