Integrated Biometrics Five-0
- Ships from Michigan, US addresses only
- 30-day returns
- Full manufacturer warranty on new hardware, see terms

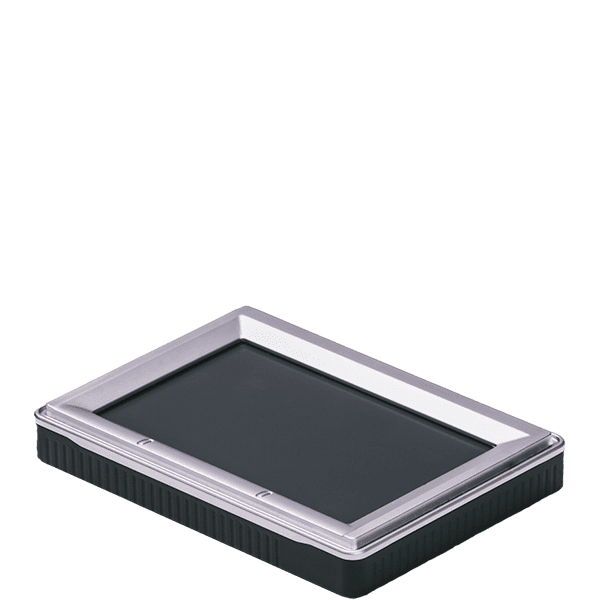

About the Integrated Biometrics Five-0

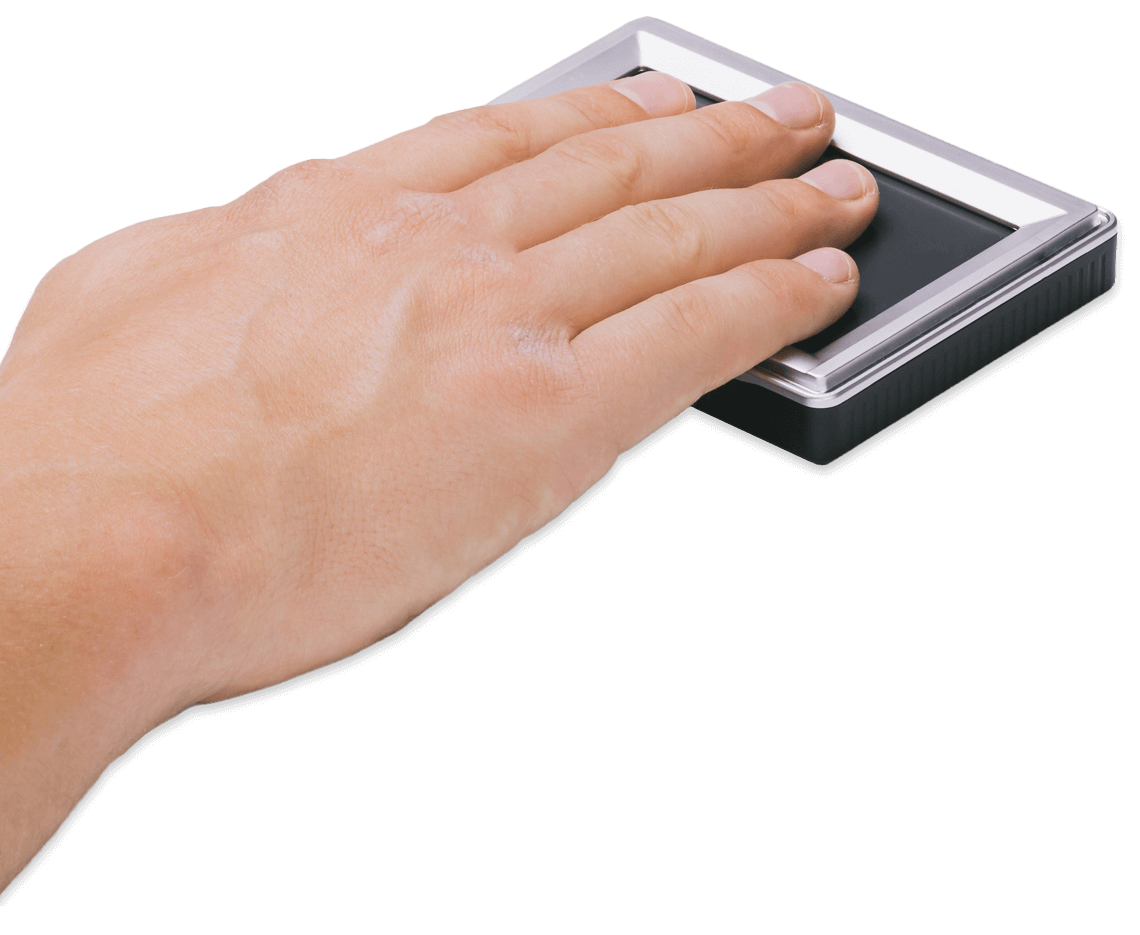

The Five-0 is a slim FAP 50 scanner from Integrated Biometrics, certified under FBI Appendix F. Its 3.2 x 2.0 inch LES film sensing area captures four-finger slaps and single rolled prints at 500 ppi, so a device well under half an inch thick can complete a full ten-print record. Like the rest of the IB line it runs on USB power and captures reliably in direct sunlight and on dry or dirty fingers. The flat, lightweight package is built for integration: mobile enrollment tablets and kiosks, voter and civil ID registration drives, and law enforcement field identification where a full-size livescan is impractical. New units are available by quote, and we periodically list graded used units that have been tested by the operators who ran them.
Specifications
| Certification | FBI Appendix F, Mobile ID FAP 50 |
|---|---|
| Capture | Four-finger slaps and single rolled prints, full ten-print |
| Sensing area | 3.20 x 2.00 in (81.2 x 50.8 mm) |
| Platen size | 3.38 x 2.12 in (85.8 x 53.9 mm) |
| Resolution | 500 ppi, 256-level grayscale |
| Image size | 1600 x 1000 pixels |
| Image formats | RAW, BMP, PNG, JPEG2000, WSQ |
| Sensor | LES (light emitting sensor) film |
| Spoof detection | iBeta ISO 30107-3 compliant presentation attack detection |
| Interface | USB 2.0 |
| Power | USB bus powered, 4.4 to 5.25 V, no external supply |
| Dimensions | 4.46 x 3.26 x 0.68 in (113.4 x 82.9 x 17.2 mm) |
| Weight | 0.42 lb (191.6 g) |
| Operating temperature | -10 to +55 C (14 to 131 F) |
| Humidity | 20 to 95% RH, non-condensing |
| Durability | IP65 sealed bezel, MIL-STD-810F, ESD per IEC 61000-4-2 |
Compatibility
Certifications
Certified under the FBI's Appendix F image quality specification for livescan and card-scan systems, per the FBI Certified Products List.
Fingerprint Acquisition Profile 50: defines the capture area and image requirements this scanner is certified to. Higher FAP levels capture more fingers at once. See our FAQ for a plain-English guide.
Captures rolled fingerprints, required for most applicant and booking workflows.
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
