About the Xperix RealScan D

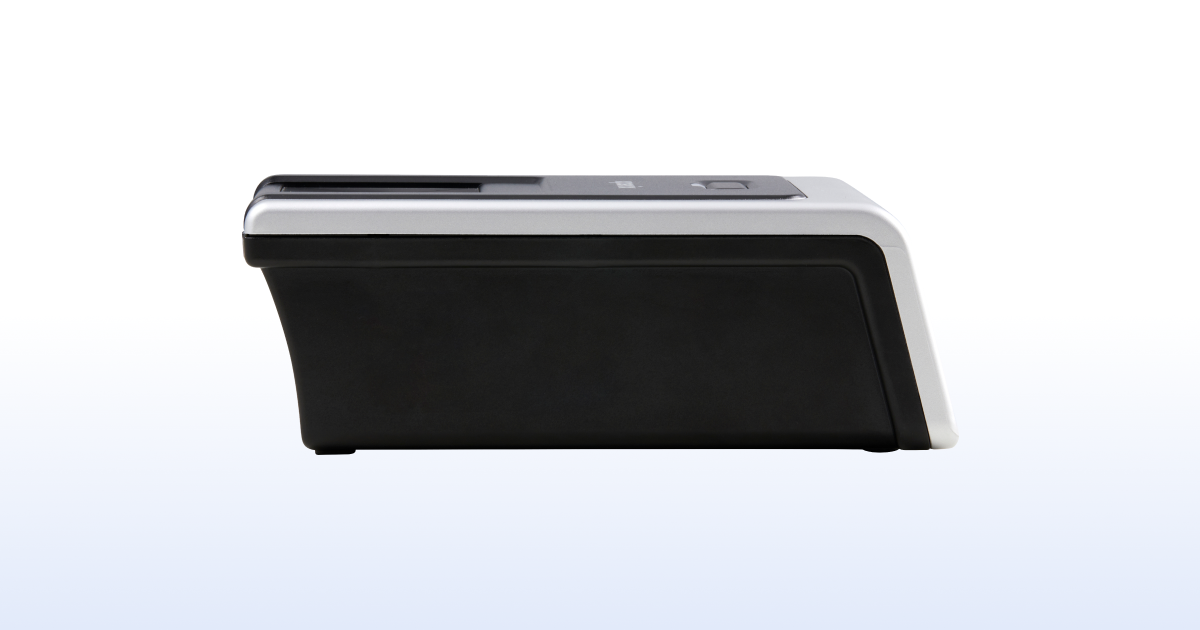

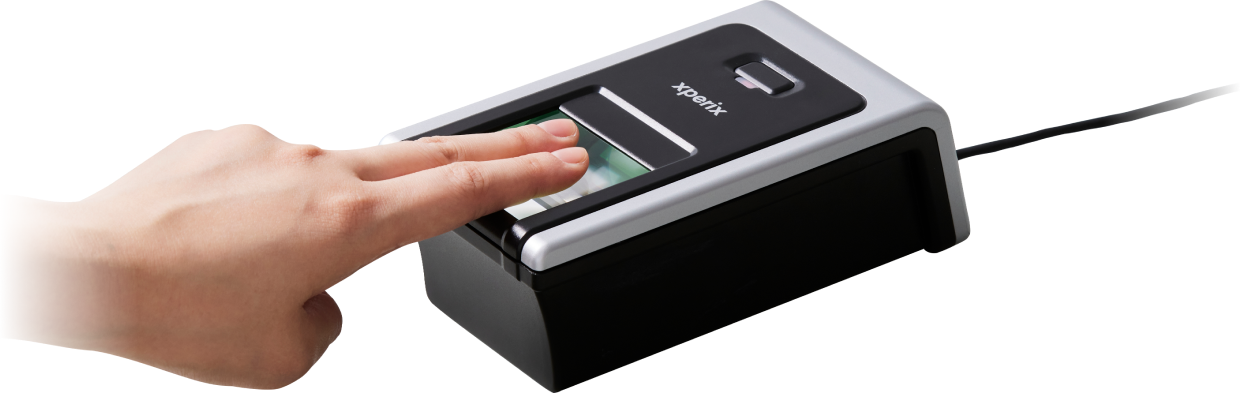

The RealScan D is a two-finger scanner from Xperix, formerly sold under the Suprema name. It is FBI certified for Mobile ID FAP 45 under Appendix F and for PIV single-finger capture, taking two flat fingers at once or single rolled prints at 500 ppi on a 48 x 48 mm platen with AI-based live finger detection. The upright desktop shape and fast start-up make it a natural fit for enrollment stations, applicant fingerprinting desks, and verification counters where two-finger flats and occasional rolls are the daily workload. We stock it new and offer graded used units, each tested by the fingerprinting operators who ran it before it is listed.
Specifications
| Certification | FBI Appendix F Mobile ID FAP 45, FBI PIV single finger |
|---|---|
| Capture | Two flat fingers simultaneously or single rolled prints |
| Sensing area | 1.81 x 1.81 in (46 x 46 mm) |
| Platen size | 1.89 x 1.89 in (48 x 48 mm) |
| Resolution | 500 ppi, 8-bit 256-level grayscale |
| Image size | 900 x 900 pixels |
| Image formats | RAW, BMP, WSQ, JPEG2000, ISO 19794-4 |
| Live finger detection | AI-based fake finger rejection |
| Interface | USB 2.0 High Speed, powered from the USB host, 5.0 V |
| Start-up time | 0.37 seconds |
| Dimensions | 3.31 x 6.73 x 2.48 in (84 x 171 x 63 mm) |
| Weight | 1.19 lb (540 g) |
| Operating temperature | -10 to +55 C (14 to 131 F) |
| Humidity | 10 to 90% RH, non-condensing |
| Ingress protection | IP53 sealed between bezel and sensor surface |
Compatibility
Certifications
Certified under the FBI's Appendix F image quality specification for livescan and card-scan systems, per the FBI Certified Products List.
Fingerprint Acquisition Profile 45: defines the capture area and image requirements this scanner is certified to. Higher FAP levels capture more fingers at once. See our FAQ for a plain-English guide.
Captures rolled fingerprints, required for most applicant and booking workflows.
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
