Thales DactyScan40p
- Ships from Michigan, US addresses only
- 30-day returns
- Full manufacturer warranty on new hardware, see terms
About the Thales DactyScan40p

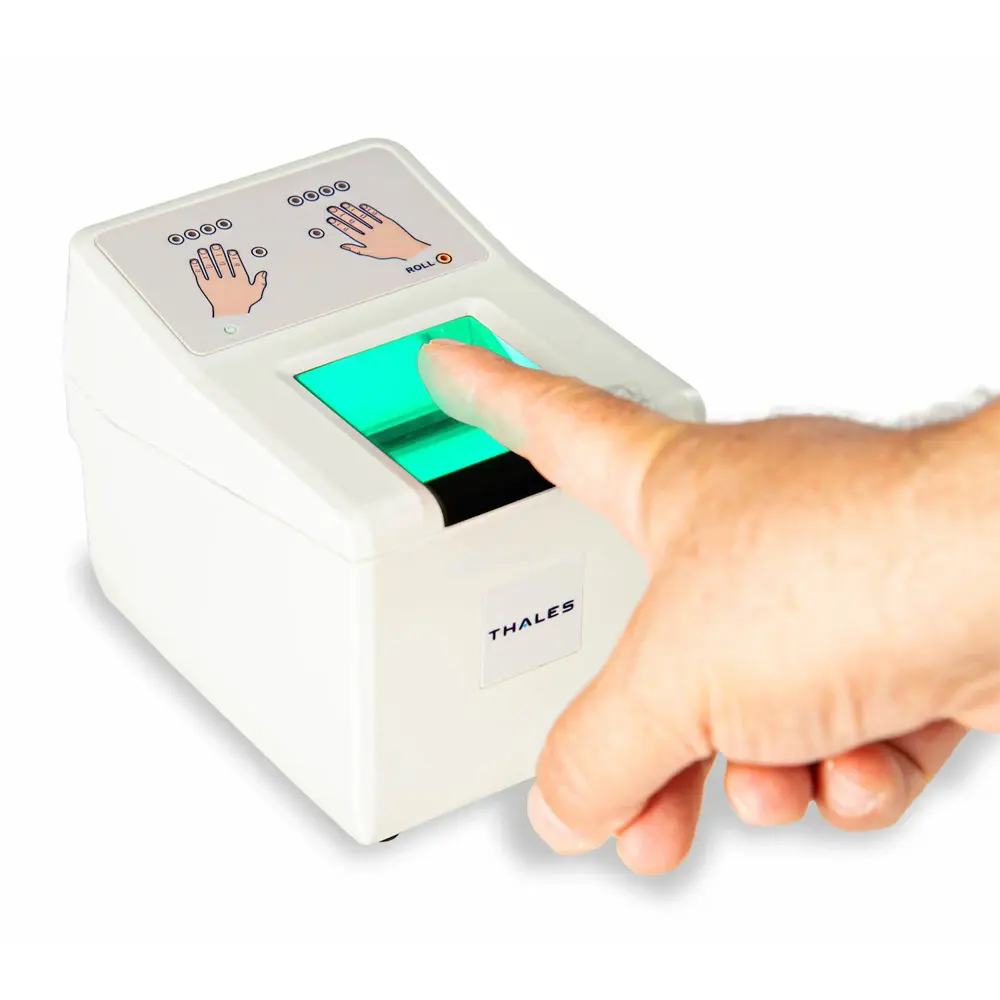

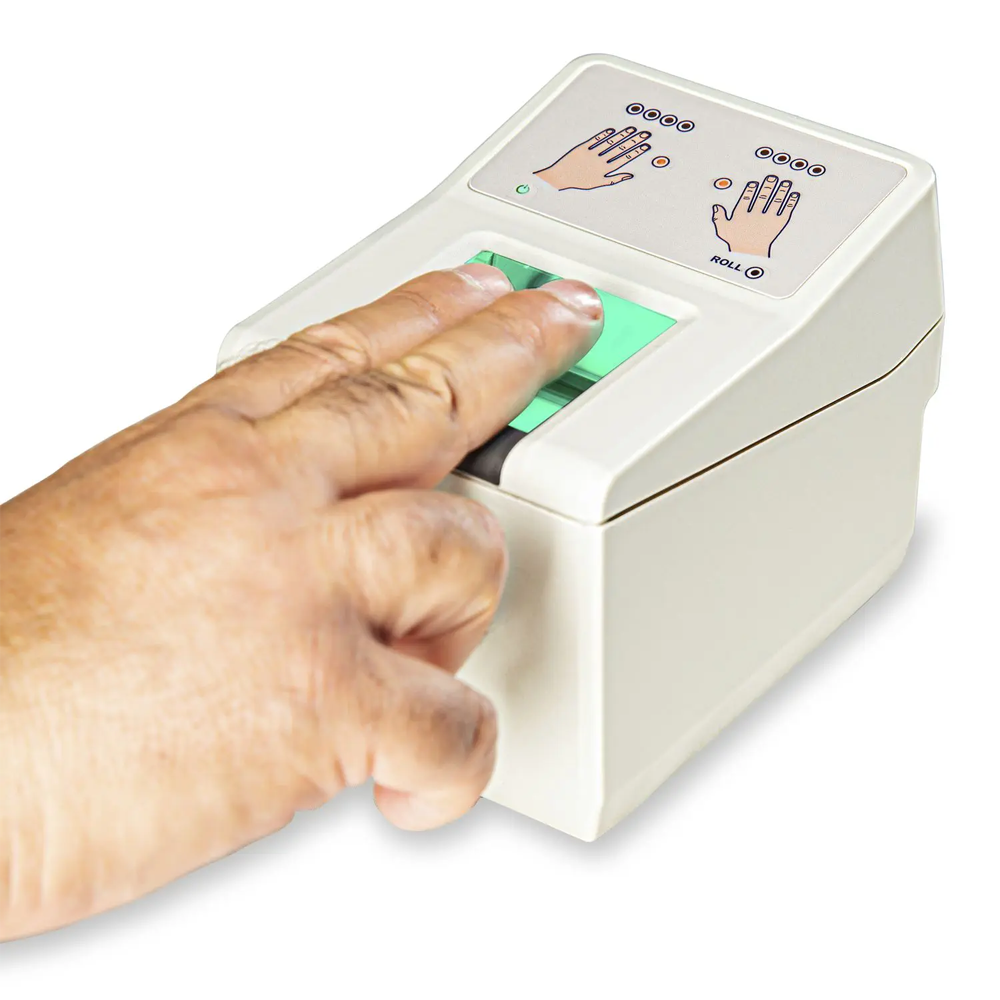

The DactyScan40p is a compact two-finger scanner from the Thales Green Bit line, certified to FBI IAFIS IQS Appendix F at FAP 45 and FBI PIV certified. It captures two flat fingers or single rolled prints at 500 dpi on a 1.6 x 1.6 inch scanning window, with hand pictograms and twelve tri-color LEDs walking the subject through the sequence. At 500 grams it fits enrollment stations, verification desks, and applicant workflows where full slap capture is not required, and rolled capture self-adapts to speed and direction so untrained subjects still produce usable rolls. Finger liveness detection is available as a software add-on, no hardware change needed. New units are available by quote through our authorized Thales partnership, and we list graded used units when we have them.
Specifications
| Certification | FBI IAFIS IQS Appendix F (FAP 45), FBI PIV certified |
|---|---|
| Capture | Two flat fingers or single rolled prints |
| Active scanning window | 1.6 x 1.6 in (40.6 x 40.6 mm) |
| Resolution | 500 dpi |
| Image formats | WSQ, JPEG, JPEG2000 |
| Capture features | Auto start and stop, self-adaptive rolled capture, quality check, latent elimination |
| Liveness detection | Optional software add-on, no hardware upgrade required |

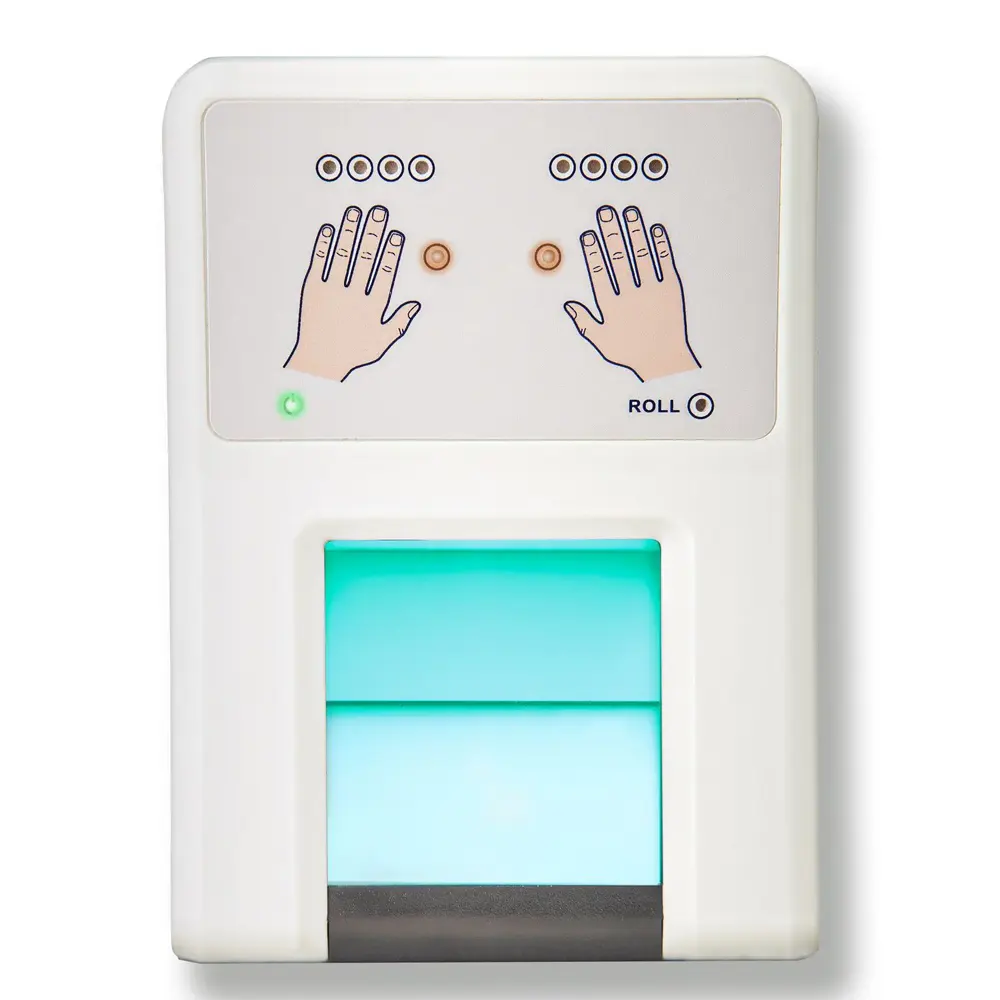

| Operator guidance | Hand pictograms and 12 three-color LEDs |
| Interface | USB 2.0 |
| Dimensions | 3.37 x 4.88 x 3.15 in (85.5 x 124 x 80 mm) |
| Weight | 1.10 lb (500 g) |
| Operating temperature | 0 to +50 C (32 to 122 F) |
| Humidity | 10 to 90% RH, non-condensing |
Compatibility
Certifications
Certified under the FBI's Appendix F image quality specification for livescan and card-scan systems, per the FBI Certified Products List.
Fingerprint Acquisition Profile 45: defines the capture area and image requirements this scanner is certified to. Higher FAP levels capture more fingers at once. See our FAQ for a plain-English guide.
Captures rolled fingerprints, required for most applicant and booking workflows.
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
