Thales Document Reader QS2000
Ordering code: A3027394 Non-China manufactured- Ships from Michigan, US addresses only
- 30-day returns
- Full manufacturer warranty on new hardware, see terms

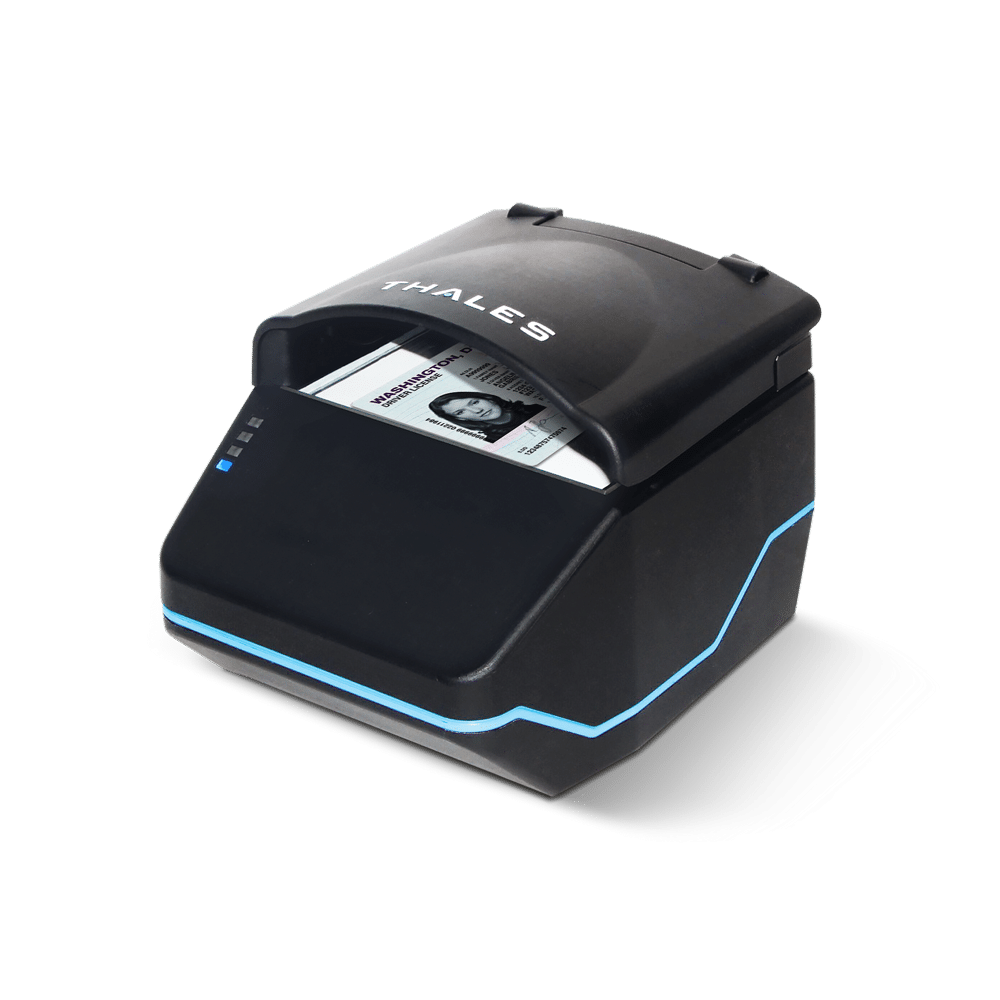

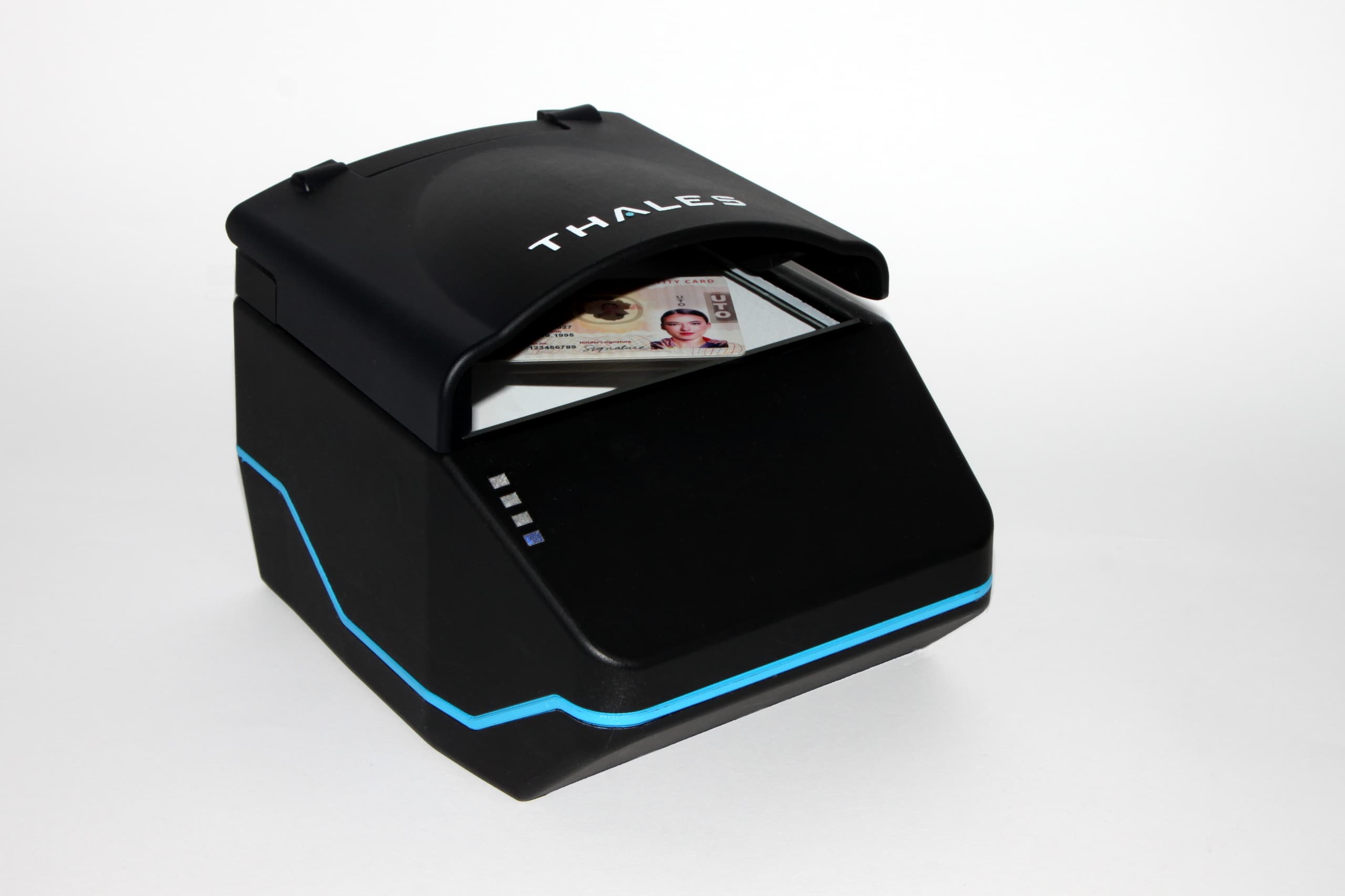

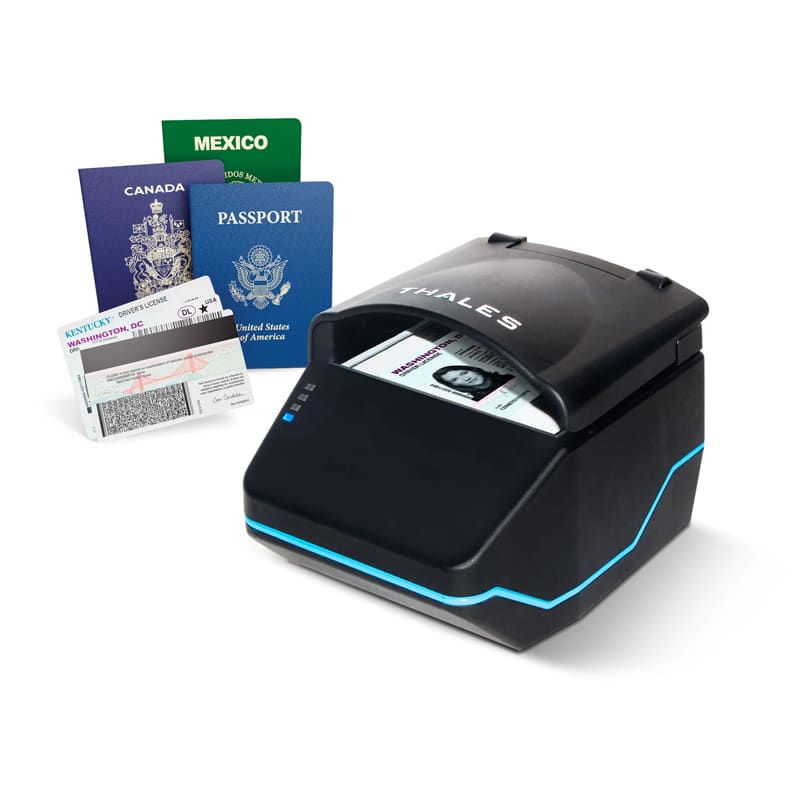

About the Thales Document Reader QS2000
The QS2000 is a full-page document reader from the Thales Gemalto line built for ID capture at scale. It images passports, ID cards, and driver licenses at 400 dpi in 24-bit color under white and infrared light, reads the ICAO 9303 MRZ with checksum validation, and decodes 1D and 2D barcodes including PDF417, QR, DataMatrix, and Aztec, with an AAMVA parser for North American licenses. Documents can be placed anywhere on the 125 x 90 mm window and capture triggers automatically, which keeps lines moving in hotels, casinos, age-controlled retail, banking KYC, and visitor management. Factory options add ICAO e-passport chip reading with Basic Access Control and a contact smart card slot, and optional verification software checks captured documents against a database of trusted security features. We sell it new as an authorized Thales partner. This unit is non-China manufactured.
Specifications
| Document types | Passports, ID cards, driver licenses; ICAO 9303 documents and 1-line licenses per ISO 18013 |
|---|---|
| MRZ reading | OCR with ICAO 9303 checksum validation, automatic capture trigger |
| Barcodes | 1D (Code 128, Code 39, UPC-A, EAN, 2 of 5) and 2D (PDF417, QR, DataMatrix, Aztec) with AAMVA parser |
| RFID chip reading | Optional: ISO 14443 A/B e-passport module with ICAO 9303 LDS and Basic Access Control |
| Contact smart card | Optional, ISO 7816, factory fit |
| Light sources | White visible LEDs (430 to 700 nm) and near infrared B900 (860 nm) |
| Imaging | 400 dpi, 24-bit RGB color; BMP, PNG, JPEG output |
| Window size | 4.9 x 3.5 in (125 x 90 mm), document placed anywhere on window |
| Verification | Optional ID verification software matching captured images against trusted security features |
| Interface | USB 2.0 or USB 3.2 Gen 1 Type-C, powered from a single USB port |
| Dimensions | 7.3 x 6.0 x 5.2 in (18.5 x 15.3 x 13.2 cm) with light shield |
| Weight | 1.7 lb (0.8 kg) |
| Operating temperature | -10 to +55 C (14 to 131 F) |
| Warranty | Two-year manufacturer warranty |
| Ordering code | A3027394 |
Compatibility
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
