Thales Document Reader AT10K-m BLE
Ordering code: A3430839 Non-China manufactured- Ships from Michigan, US addresses only
- 30-day returns
- Full manufacturer warranty on new hardware, see terms

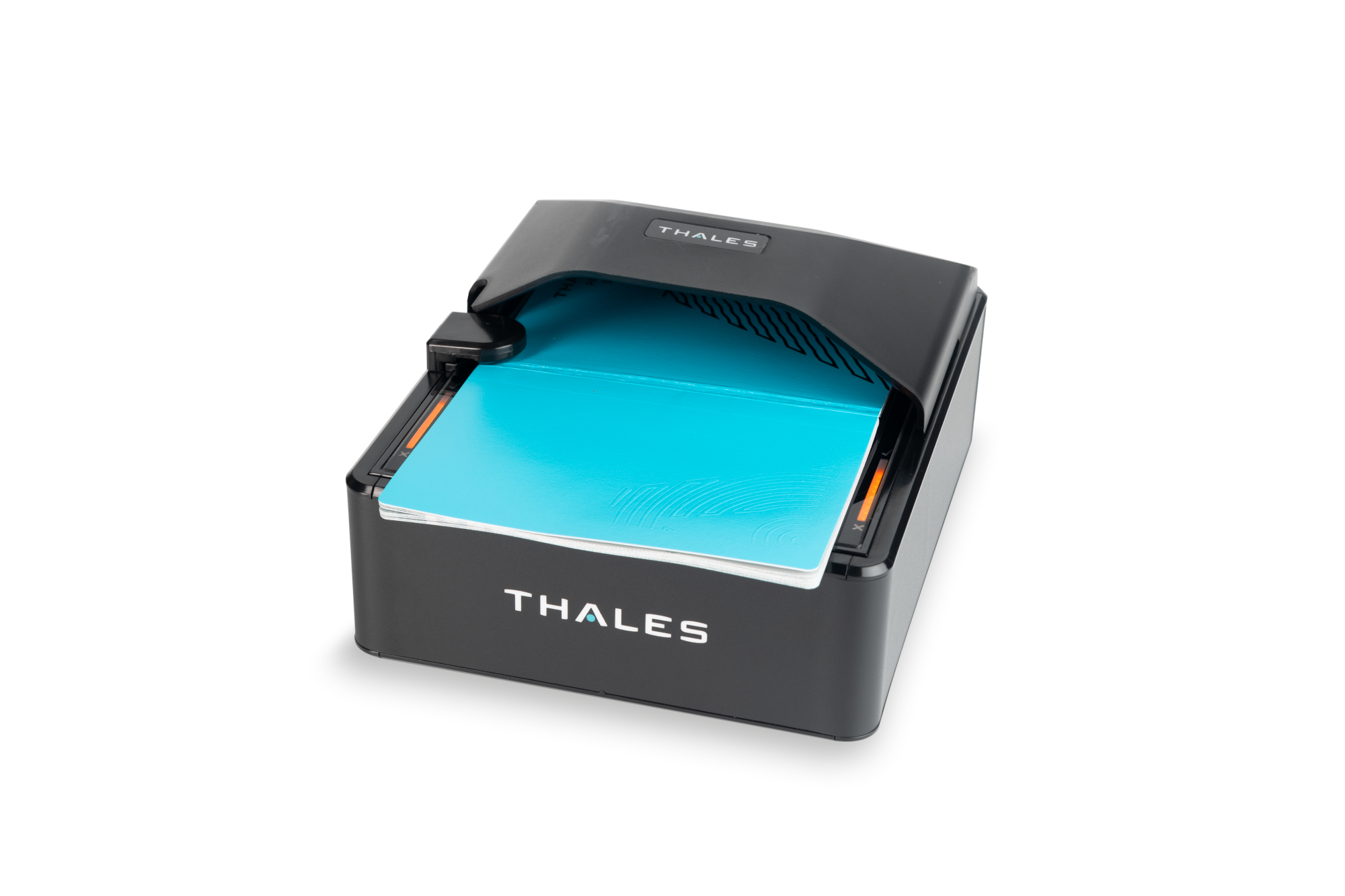

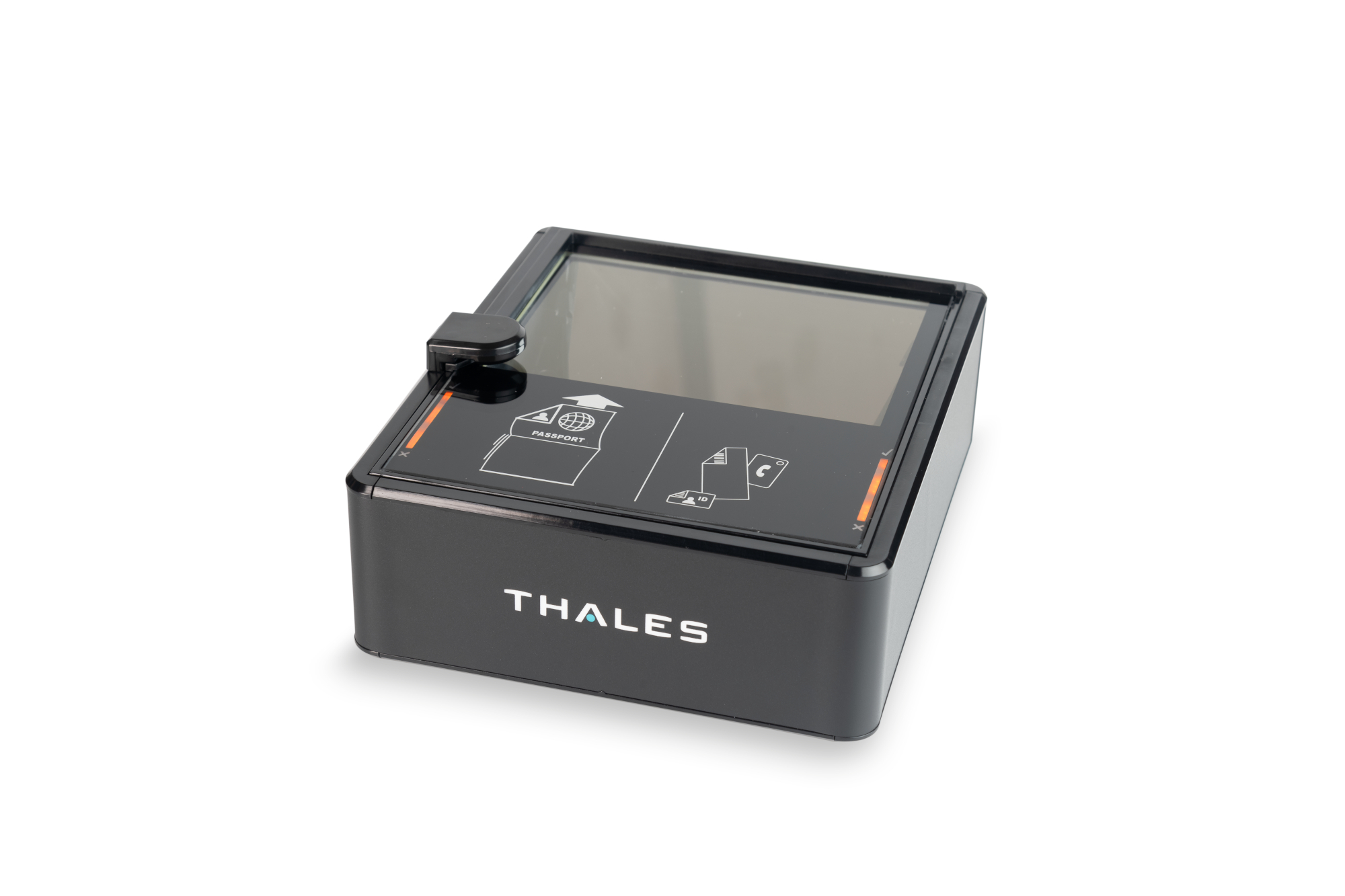

About the Thales Document Reader AT10K-m BLE
The AT10K-m is the current generation of Thales full-page document readers, built for border control, airline, and government counters. A 10-megapixel camera images the whole passport page at 550 dpi in 36-bit color under infrared, visible, and ultraviolet light, and the RFID module reads e-passport and eID chips with the full protocol suite: BAC, PACE, SAC, Chip and Terminal Authentication, and EAC. It also decodes 1D and 2D barcodes from paper and phone screens, including boarding passes. The m in the name means mobile-document capable: with the mDoc activation license, this BLE variant verifies ISO/IEC 18013-5 mobile driver licenses and mobile IDs using QR code engagement and Bluetooth Low Energy or NFC transfer. A removable hood accommodates phones and gloved hands, images are held only in volatile memory, and it was the first document reader to earn an Energy Star certificate. We sell it new as an authorized Thales partner. This unit is non-China manufactured.
Specifications
| Document types | Passports and e-passports, ID cards, driving licenses, boarding passes, mobile documents (with mDoc license) |
|---|---|
| MRZ reading | Near infrared OCR per ICAO 9303; 1-line licenses per ISO 18013 |
| RFID chip reading | ISO 14443 A/B; ICAO 9303 LDS and PKI; BAC, PACE, SAC, PACE-CAM, Chip and Terminal Authentication, EAC v1/v2; BSI TR-03105 certified SDK |
| Mobile documents | ISO/IEC 18013-5 mDL and mDoc via QR engagement plus Bluetooth Low Energy or NFC (optional license activation) |
| Barcodes | 1D and 2D (PDF417, QR, DataMatrix, Aztec) from paper and phone screens, AAMVA parser |
| Light sources | Near infrared B900 (880 nm), white visible (400 to 700 nm), ultraviolet UVA (365 nm); optional coaxial white |
| Imaging | 550 dpi, 10-megapixel sensor, 36-bit RGB, scalable to 700 dpi; BMP, PNG, JPEG output; anti-glare |
| Privacy | Images held in volatile memory only, erased at power off |
| Interface | USB 3.2 Type A or Type C; optional external supply |
| Dimensions | 7.4 x 6.3 x 2.6 in (18.7 x 16.0 x 6.5 cm), 4.1 in tall with hood |
| Weight | 2.4 lb (1.1 kg) |
| Operating temperature | -10 to +50 C (14 to 122 F) |
| Ingress protection | IP54 optical chamber |
| Energy | Energy Star certified |
| Warranty | Two-year manufacturer warranty |
| Ordering code | A3430839 |
Compatibility
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
