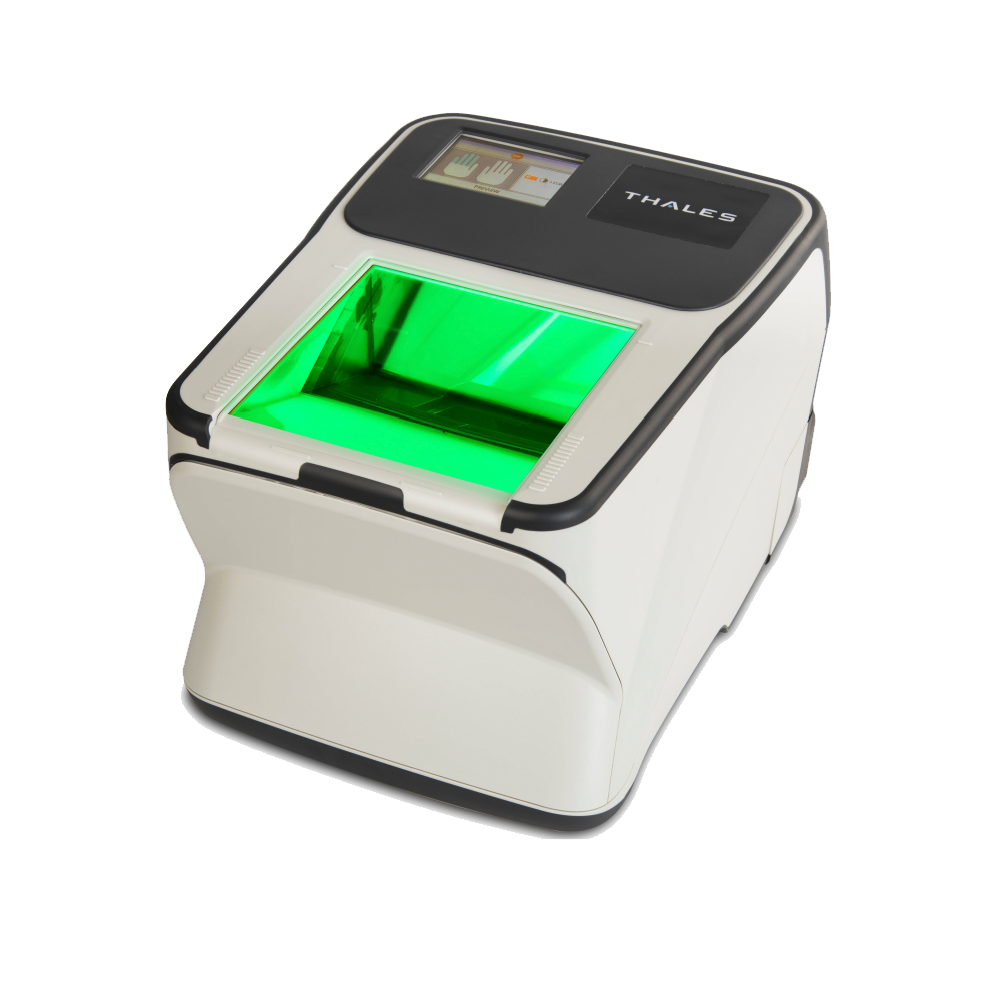

Thales Palm Scanner CS500q
Ordering code: A2777601- Ships from Michigan, US addresses only
- 30-day returns
- Full manufacturer warranty on new hardware, see terms
About the Thales Palm Scanner CS500q
The CS500q is a full-size palm and ten-print scanner from the Thales Cogent line, FBI IAFIS IQS Appendix F certified and Appendix P compliant. Its 5 x 5 inch capture surface takes four-finger slaps, half palms, writer's palms, thenar and hypothenar prints, fingertips, and rolled prints at 500 dpi with 256 gray levels, covering every supplemental print type the FBI standards define. That makes it a booking and forensic workhorse: one device completes the entire criminal ten-print and palm record. An integrated heater keeps the prism at capture temperature in cold rooms, a full-color LCD touchscreen guides the operator workflow, and capture runs at up to 25 frames per second for rolls over USB 3.0. We sell it new as an authorized Thales partner, with volume pricing available by quote.
Specifications
| Certification | FBI IAFIS IQS Appendix F certified, Appendix P compliant |
|---|---|
| Capture | Ten-prints, rolls, half palms, writer's palm, thenar and hypothenar, fingertip prints |
| Palm capture area | Slaps and half palms up to 5 x 5 in; rolled thenar up to 4.5 x 3 in |
| Finger capture area | Flat fingertips up to 3.2 x 3.0 in; rolled prints up to 1.6 x 1.6 in |
| Resolution | 500 dpi, 256 gray levels |
| Capture speed | Up to 8 fps full frame, up to 25 fps for rolled prints |
| Image formats | WSQ, JPEG2000; NFIQ and NFIQ2 real-time quality scoring |
| Capture features | Slap and palm completeness checks, latent and halo elimination, segmentation, dry finger enhancement |
| Prism heater | Integrated, for low-temperature environments |
| Operator interface | Full-color LCD touchscreen |
| Interface | USB 3.0 |
| Power | External supply, 100 to 240 V AC input, 5 V DC 30 W max output |
| Dimensions | 8.94 x 12.20 x 7.36 in (227 x 310 x 187 mm) |
| Weight | 10.4 lb (4.7 kg) |
| Operating temperature | 0 to +50 C (32 to 122 F) |
| Humidity | 10 to 90% RH, non-condensing |
| Ingress protection | IP54 |
Compatibility
Certifications
Certified under the FBI's Appendix F image quality specification for livescan and card-scan systems, per the FBI Certified Products List.
Captures rolled fingerprints, required for most applicant and booking workflows.
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
