Thales MRZ Swipe Reader CR100M
Ordering code: A2529092 Non-China manufactured- Ships from Michigan, US addresses only
- 30-day returns
- Full manufacturer warranty on new hardware, see terms

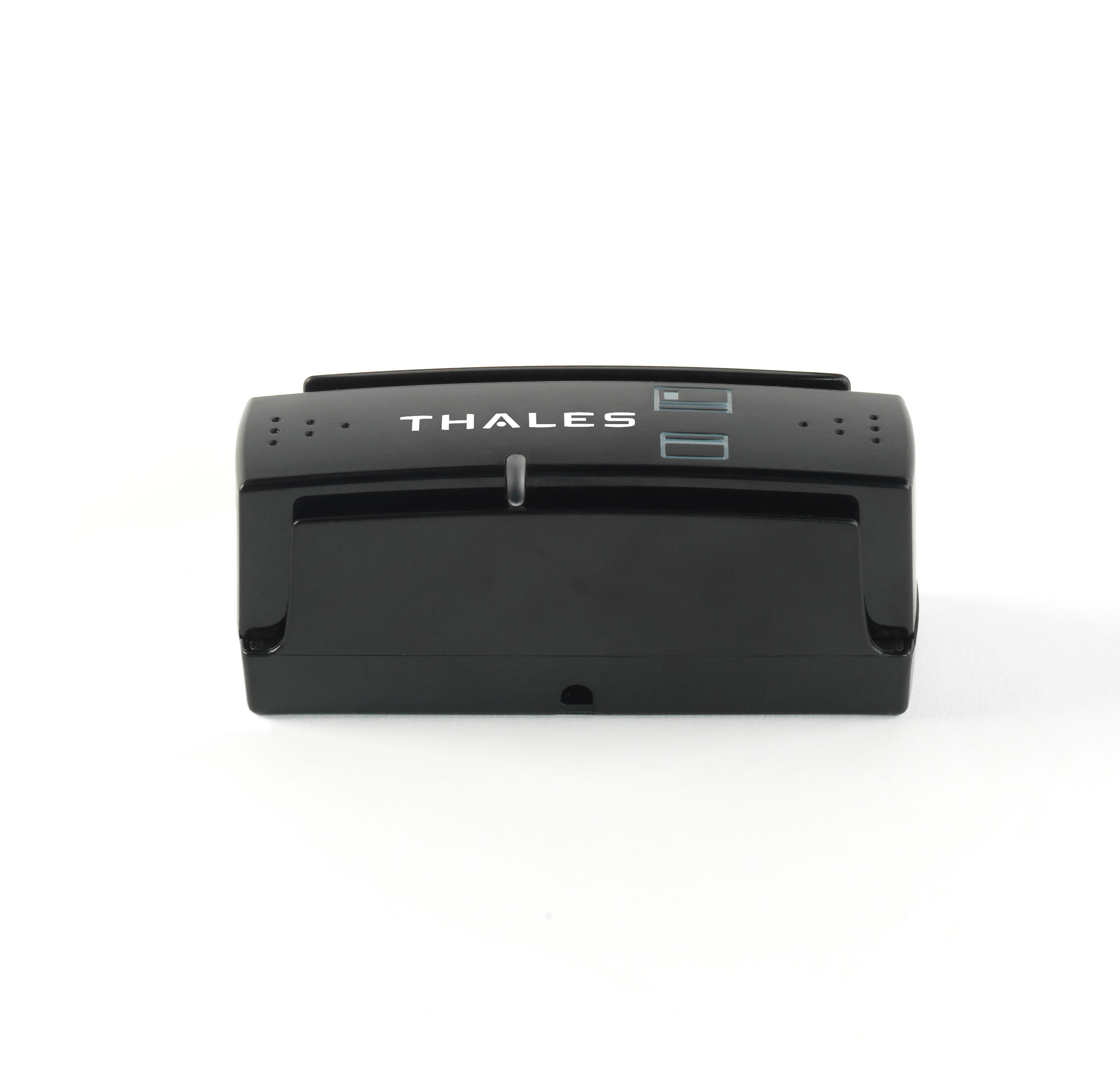

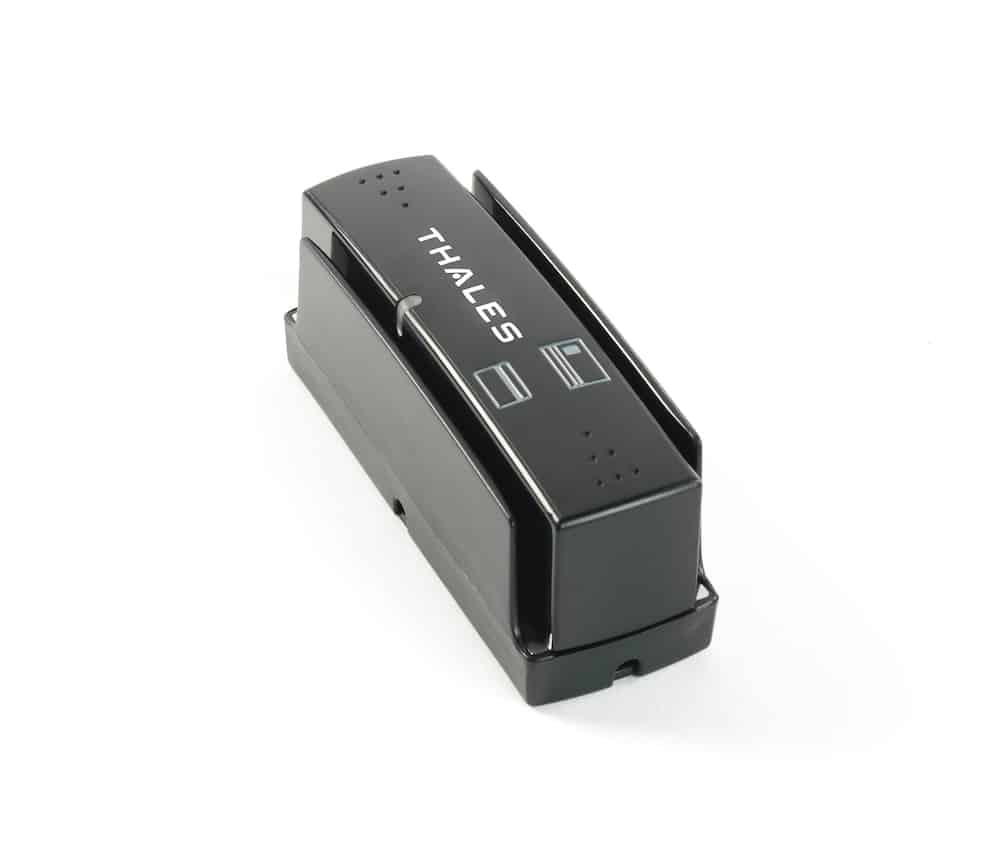

About the Thales MRZ Swipe Reader CR100M
The CR100M is a compact swipe reader from the Thales Gemalto line that captures the machine-readable zone of passports, visas, and ID cards in near infrared per ICAO 9303, and also reads 3-track magnetic stripes to ISO 7811 and AAMVA. It handles 2-line and 3-line ICAO documents, 1-line driving licenses to ISO 18013, and swipes in both directions. Because it is small, USB powered, and needs no external supply, it drops into airline check-in counters, hotel front desks, KYC and visitor management stations, and border posts where a full-page reader is more than the workflow needs. The SDK ships with an AAMVA parser and supports Windows, Linux, and Android. We sell it new as an authorized Thales partner. This unit is non-China manufactured.
Specifications
| Document types | Passports, visas, and ID cards with 2- or 3-line ICAO 9303 MRZ; 1-line driving licenses per ISO 18013; magnetic stripe cards |
|---|---|
| MRZ reading | OCR of the codeline in near infrared (B900, 875 nm) per ICAO 9303, bi-directional swipe |
| Magnetic stripe | 3-track reader per ISO 7811, including AAMVA driver licenses |
| Interface | USB 2.0, 2 m or 15 cm cable options |
| Power | USB powered, no external supply, under 400 mA peak |
| Dimensions | 4.6 x 1.6 x 1.9 in (11.7 x 4.0 x 4.8 cm) module; 5.2 x 2.2 x 2.0 in with desk mount |
| Weight | 4.2 oz (120 g) module; 5.6 oz (160 g) with desk mount |
| Operating temperature | 5 to 35 C (41 to 95 F) |
| Regulatory | UL, CB, FCC Part 15 Class A, CE, RoHS |
| Warranty | Two-year manufacturer warranty |
| Ordering code | A2529092 |
Compatibility
OS and SDK
Windows, Linux (Ubuntu, CentOS), Android; SDK with AAMVA parser for C++, Java, .NET
What's in the box
- The device, new in original manufacturer packaging
- Manufacturer-standard cables and accessories
- Quick start documentation
- Downloadable datasheet and driver links
